Inline Video is a high impact video format that appears in-line within the page content. You can choose to either upload your own MP4 file, or else use a VAST tag as the source of the video. An optional overlay can be used to add static brand elements on top of the video.

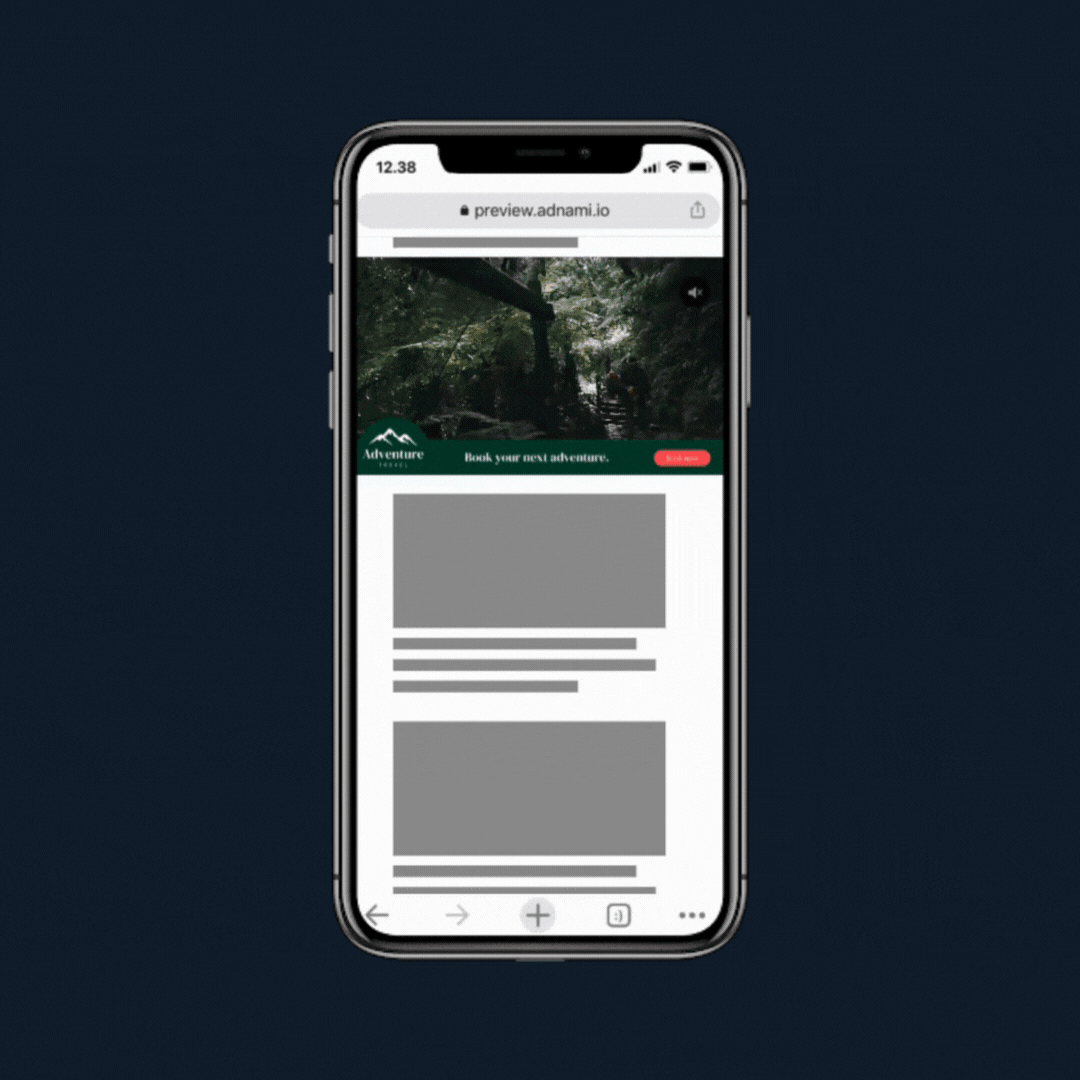

Examples
Format Specs
Video
1280x720 (16:9) MP4 (Optimised for web)
OR VAST 4.0 Compatible Tag
Max duration 30 seconds
Overlay (Optional)
1280x720 (16:9) PNG with transparent background
Endframe (Recommended)
1280x720 (16:9) JPG or PNG
Format description and guidance
Inline Video is a high impact auto-playing video format that appears midway down the page (mid-content). The format accepts either an MP4 video, or a VAST tag as a source. An optional overlay can be used to add static brand elements on top of the video. It is strongly recommended to include a static endframe to safeguard against suspended auto-play. Read more about endframes here and ensure your ad never appears blank!
Click URL
Click tracking is included in the template. If the VAST tag contains a clickthrough URL, it will automatically be used.
Max total file weight
Video: Files up to 50 MB are accepted, with a recommended maximum length of 20 seconds.
Image: Maximum 200kb.
Audio
User-initiated
Template Details
Automatically synced on 2026-02-11T14:27:19.572Z. This section documents the canvases, banner templates, and trafficking controls directly from the source configs.
Canvases: Mobile Inline Video
Banner templates: Video Streaming, VAST Tag Player
Use the tables below to configure the linked banner templates. Each parameter definition is pulled straight from the template config, ensuring the spec always documents the latest functionality.
Video Streaming
Responsive video banner, with optional overlays. · Version 2.0.1
General
| Parameter | Purpose | Default / Choices | Notes |
|---|---|---|---|
| Click URL | Destination URL triggered when the user interacts with this element. Include https:// and any tracking parameters. | ||
| Video Asset | Provide the video asset video in MP4 or WEBM format, encoded for autoplay and kept under the maximum weight. |
Video Settings
| Parameter | Purpose | Default / Choices | Notes |
|---|---|---|---|
| Max Video Stream Weight | Sets the maximum allowed video stream weight used when selecting available encodes. | 3.5mb | choices: 3.5mb, 3.0mb, 2.5mb, 2.0mb, 1.5mb, 1.0mb | |
| Scaling Mode | Sets the scaling behaviour of the video. Letterbox and Pillarbox add space. Cover may crop. Contain avoids cropping. Original Size keeps intrinsic dimensions. | Letterbox | choices: Letterbox, Pillarbox, Cover, Contain, Original Size | |
| Video Position | Anchor Point used to position the video within the banner. | mid-center | choices: top-left, top-center, top-right, mid-left, mid-center, mid-right, bot-left, bot-center, bot-right | |
| Audio | Enables or disables video audio. | Enabled | choices: Enabled, Disabled | |
| Audio Button Position | Sets the position of the audio control button. | top-right | choices: top-left, top-right, bot-left, bot-right |
Background Settings
| Parameter | Purpose | Default / Choices | Notes |
|---|---|---|---|
| Background Type | Selects how the background behind the video is generated (auto extraction, custom image, colour fill or blurred video). | Auto Background | choices: Auto Background, Custom Image, Custom Colour, Blurred Video | |
| Background Image | Image used when Background Type is set to Custom Image. | ||
| Background Colour | Colour used when Background Type is set to Custom Colour or to fill letterboxed areas. | #FFFFFF |
Endframe (optional)
| Parameter | Purpose | Default / Choices | Notes |
|---|---|---|---|
| Endframe Image | Image displayed for the endframe when enabled. | ||
| Endframe Settings | Selects when the endframe appears relative to the video (before, after, both or disabled). | Disabled | choices: After Video, Before Video, Before and After video, Disabled | |
| Endframe Display Order | Sets layering order: show endframe above overlays or overlays above endframe. | Endframe on top of overlays | choices: Endframe on top of overlays, Overlays on top of endframe |
Overlay 1 (optional)
| Parameter | Purpose | Default / Choices | Notes |
|---|---|---|---|
| Asset | Image asset for overlay 1. | ||
| Width | Width of the overlay. Use responsive units (vw, vh, %) or 'auto'. | auto | |
| Height | Height of the overlay. Use responsive units (vw, vh, %) or 'auto'. | 10vh | |
| Position | Position of the overlay relative to the banner. | top-center | choices: top-left, top-center, top-right, mid-left, mid-center, mid-right, bot-left, bot-center, bot-right | |
| Time - In (optional) | Video time (seconds) at which the overlay appears. | ||
| Time - Out (optional) | Video time (seconds) at which the overlay hides. |
Overlay 2 (optional)
| Parameter | Purpose | Default / Choices | Notes |
|---|---|---|---|
| Asset | Image asset for overlay 2. | ||
| Width | Width of the overlay. Use responsive units (vw, vh, %) or 'auto'. | auto | |
| Height | Height of the overlay. Use responsive units (vw, vh, %) or 'auto'. | 10vh | |
| Position | Position of the overlay relative to the banner. | bot-center | choices: top-left, top-center, top-right, mid-left, mid-center, mid-right, bot-left, bot-center, bot-right | |
| Time - In (optional) | Video time (seconds) at which the overlay appears. | ||
| Time - Out (optional) | Video time (seconds) at which the overlay hides. |
Text Overlay (optional)
| Parameter | Purpose | Default / Choices | Notes |
|---|---|---|---|
| Text | Text content displayed as overlay. | ||
| Font Size | Font size of the text overlay (supports responsive units). | 1vw | |
| Position | Position of the overlay relative to the banner. | bot-center | choices: top-left, top-center, top-right, mid-left, mid-center, mid-right, bot-left, bot-center, bot-right | |
| Text Colour | Colour of the text overlay. | #ffffff | |
| Font | Font family used for the text overlay. | sans-serif | choices: sans-serif, serif, monospace, impact | |
| Time - In (optional) | Video time (seconds) at which the overlay appears. | ||
| Time - Out (optional) | Video time (seconds) at which the overlay hides. |
Overlay Config
| Parameter | Purpose | Default / Choices | Notes |
|---|---|---|---|
| Vertical Offset | Vertical distance from the top or bottom edges for overlays positioned top or bottom. | 12vh | |
| Horizontal Offset | Horizontal distance from the left or right edges for overlays positioned left or right. | 6vh |
VAST Tag Player
Dedicated inline player that only renders third-party VAST tags inside Adnami canvases and banners. · Version 2.0.0
General
| Parameter | Purpose | Default / Choices | Notes |
|---|---|---|---|
| Click URL | Global click destination for the player. | ||
| VAST Tag URL | Third-party VAST tag used for playback. |
Video Config
| Parameter | Purpose | Default / Choices | Notes |
|---|---|---|---|
| Scaling Mode | Sets how the video scales. Cover fills and may crop. Contain avoids cropping but may leave space. | contain | choices: contain, cover | |
| Audio | Enables or disables video audio. | Enabled | choices: Enabled, Disabled | |
| Background Colour | Colour behind the video when space remains after scaling. | #000000 |
Endframe & Overlay
| Parameter | Purpose | Default / Choices | Notes |
|---|---|---|---|
| Endframe Settings | Controls when the endframe appears relative to playback. | Disabled | choices: After Video, Before Video, Before and After video, Disabled | |
| Endframe Image | Image displayed as endframe when enabled. | ||
| Overlay Image (optional) | Optional overlay displayed above the video. |
