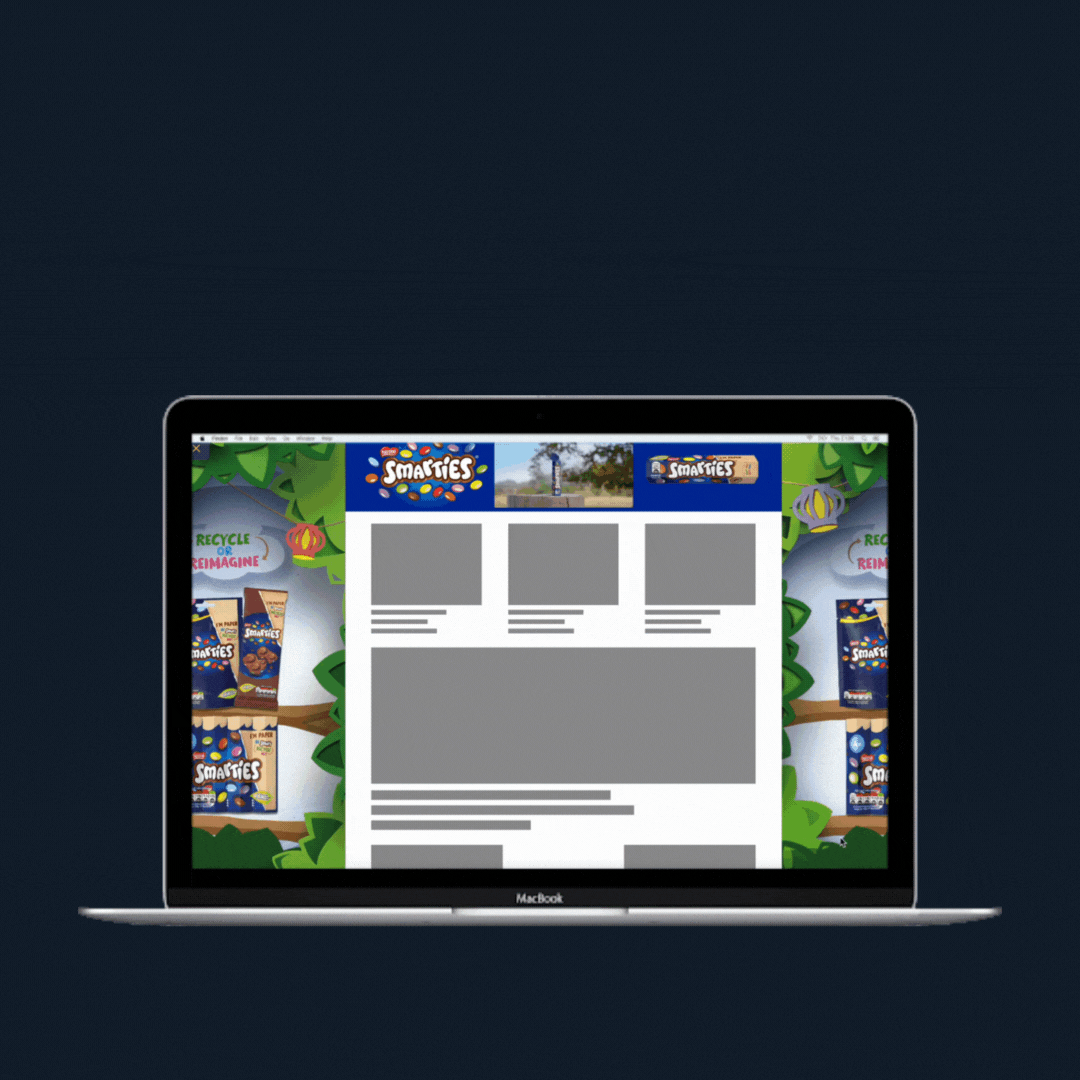

Fluid Skin Image & Video

The fluid skin format consists of three separate elements - a left panel, a right panel (the side panels), and a top banner. These specs describe how to set up a fluid skin using the Image/Video side panels template, however you are free to mix and match any of the available templates for each of the elements. You may use either images or video as the background asset of each element. For best results, combine with a PNG overlays, to create a simple responsive skin. For skin designs with artwork that spans across the entire screen, consider using our seamless skin format instead.

Guide to skins

The guide covers:

- The difference between our Seamless Skin & Fluid Skin formats
- The respective templates (i.e. Seamless Image Skin, Seamless Sliding Skin, Fluid Skin Image, Fluid Skin Video, etc.) within our Seamless & Fluid Skin formats
- Tips and best practice for using overlays

Examples

Adventure Travel
Adore

Asset Specs

Background:
  • Video - 1080x1920px (9:16) MP4 (Optimised for web)
  • Image - 800x1440px JPG

Background assets use the "cover" scaling mode by default, so be aware that the edges may appear cropped at smaller screen sizes and resolutions.

Overlays:
  • Main overlay - Max size of 800x1440px (PNG or WEBP with transparent background)
  • Top/Bottom overlays - additional optional overlay elements that will be top/bottom aligned with the overlay container. Max size of 800x500px (PNG or WEBP with transparent background).
  • For best results, export overlay PNG assets without any excess empty space - the size and position of the overlay is configurable within the template settings.
Top Banner:

Image or Video: 1280x180px* (JPG, WEBP, MP4)
HTML5: width: 100% (responsive), height: 180px* (HTML Zip File or 3rd Party Tag)

Top Banner sizes vary across publishers and between countries, so please read carefully to ensure your assets are produced correctly.

For image and video Top Banners, use a width of 1280 pixels. The height should match the billboard height from the list below, and all key content should appear within a centralised safe zone of the corresponding billboard width. eg, for a UK skin, the ideal asset size is 1280x250, with a centralised 970x250 safe zone. You may also wish to export your assets double sized (eg 2560x500), for sharper display on high resolution screens.

For HTML5 Top Banners, the creative width should be responsive (width: 100%) with a maximum width of 1280 pixels. The height should match the billboard height from the list below. If the width of your top banner is not responsive, there will be empty space visible between the top banner and side panels on some sites.

Billboard placement sizes by country:

  • ๐Ÿ‡ฆ๐Ÿ‡น AUT: 1000x250px
  • ๐Ÿ‡จ๐Ÿ‡ญ CHE: 1000x250px
  • ๐Ÿ‡ฉ๐Ÿ‡ช DEU: 1000x250px
  • ๐Ÿ‡ฉ๐Ÿ‡ฐ DNK: 930x180px
  • ๐Ÿ‡ซ๐Ÿ‡ฎ FIN: 1000x400px
  • ๐Ÿ‡ซ๐Ÿ‡ท FRA: 970x250px
  • ๐Ÿ‡ฎ๐Ÿ‡น ITA: 1000x250px
  • ๐Ÿ‡ฒ๐Ÿ‡ฝ MEX: 970x250px
  • ๐Ÿ‡ณ๐Ÿ‡ฑ NLD: 970x250px
  • ๐Ÿ‡ณ๐Ÿ‡ด NOR: 980x300px
  • ๐Ÿ‡ต๐Ÿ‡ฑ POL: 970x250px
  • ๐Ÿ‡ธ๐Ÿ‡ช SWE: 1000x240px
  • ๐Ÿ‡ฌ๐Ÿ‡ง GBR: 970x250px

Format description and guidance

Background assets use the "cover" scaling mode by default, so be aware that the edges may appear cropped for different screen sizes and resolutions. You can set the anchor point of the background via background position - this is the transformation point around which the image will be scaled, and it will be the part of the asset guaranteed to be in view, so make sure to set it to an appropriate value for your specific assets. If the "contain" scaling mode is used, you can select a background colour to fill any empty space, or if your background asset is a video, you can also upload a separate background image which will fill any empty space behind the video background.

Use the overlays to add your static branding and messaging elements on top of the background. The overlays automatically scale and resize your content to fit within the available space, enabling responsive functionality for your skin. You can define the overlay container width & height (as a percentage of the total side-panel area), as well as define minimum and maximum widths (in pixels) to constrain their scaling.

The main overlay is the primary overlay asset, which will fill as much space within the overlay container as is available. Optional top and bottom overlays can be added, allowing for static branding elements such as logos and CTAs to be positioned separately from the main overlay, allowing for more advanced responsive layouts. The top/bottom overlays will match the full overlay container width, and you can adjust their heights to control how big they will appear

You can additionally configure how the overlays are positioned within the skin side-panels. By default they are centered, however you can modify the horizontal and vertical alignment of the overlays using the preset positioning options, and add an offset to fine-tune the position (you can use any valid css unit eg 250px, 50%, 20vh etc, measured from the selected position edge).

For best results, export overlay PNG assets without any excess empty white space - this allows the template to handle the overlay scaling and placement more effectively.

Sticky video and the side overlays. When the creative is paired with the Skin Top with Sticky Streaming Video top banner, the video moves into the side panel once the top banner scrolls out of view. The Overlay Behaviour setting controls what the side overlays do while that player is on screen:

  • Overlap (default) โ€“ the player is drawn on top of the overlays. Nothing moves, but the player can obscure overlay content on shorter screens.
  • Resize While Sticky โ€“ the overlay container shrinks to the space the player leaves while it is on screen, and returns to full size when playback is handed back to the top banner.
  • Always Reserve Space โ€“ that reduced overlay area is kept at all times, so nothing moves as the user scrolls.

Both reserving modes scale the overlays down rather than cropping them, so design overlay artwork to stay legible at around two thirds of its full height. The Overlay Container Gap sets the minimum space kept between the player and the overlays. Overlap is the default, so a creative only behaves differently once this is changed.

Max duration

For best quality, keep autoplaying skin background videos to roughly 10-15 seconds to minimise compression and quality issues.

Click URL

Click tracking is included in the template.

Max total file weight

Video: Files up to 50 MB are accepted. For best quality, keep skin background videos to roughly 10-15 seconds.
Image: Maximum 200kb.

Audio

User-initiated

Template Details

Fluid Scrolling Skin

General
ParameterPurposeDefault
Default Click URLClick destination used unless a skin sets its own Click URL.
Transition StyleSets how one skin gives way to the next as the page scrolls. Vertical Wipe peels the skin away from the bottom edge upwards, and is the original effect. Horizontal Wipe uncovers the next skin from the right edge across to the left. Circular Wipe grows the next skin out from the centre of the banner. Fade dissolves one skin into the next.Vertical Wipe | choices: Vertical Wipe, Horizontal Wipe, Circular Wipe, Fade
Show Transition ShadowWhen enabled, the edge of the transition casts a soft drop shadow over the skin beneath it.True | choices: True, False
Skin 1
ParameterPurpose
Click URL (optional)Falls back to the Default Click URL when blank.
Background (Image)Image asset used as the background. Add only an image or a video, not both.
Main OverlayMain overlay asset, using as much space as is available within the overlay container.
Skin 2
ParameterPurpose
Click URL (optional)Falls back to the Default Click URL when blank.
Background (Image)Image asset used as the background. Add only an image or a video, not both.
Main OverlayMain overlay asset, using as much space as is available within the overlay container.
Skin 3
ParameterPurpose
Click URL (optional)Falls back to the Default Click URL when blank.
Background (Image)Image asset used as the background. Add only an image or a video, not both.
Main OverlayMain overlay asset, using as much space as is available within the overlay container.
Static Overlays
ParameterPurposeDefault
Top Overlay (optional)Optional overlay anchored to the top of the overlay container.
Top Overlay HeightSets the height of the top overlay as a percentage of the overlay container (px, vw and vh also accepted).15%
Bottom Overlay (optional)Optional overlay anchored to the bottom of the overlay container.
Bottom Overlay HeightSets the height of the bottom overlay as a percentage of the overlay container (px, vw and vh also accepted).10%
Background Settings
ParameterPurposeDefault
Scaling ModeSets how the background scales. Cover fills the area and may crop. Contain shows the whole asset and may leave empty space. None keeps the intrinsic size.cover | choices: cover, contain, none
Background Anchor PointSets where the background is anchored when it is scaled to fill the panel.top-center | choices: top-left, top-center, top-right, mid-left, mid-center, mid-right, bot-left, bot-center, bot-right
Background ColourColour shown wherever the background does not cover the skin.#FFF
Overlay Container
ParameterPurposeDefaultNotes
Overlay Container WidthSets the width of the overlay container as a percentage of the side panel width.80%Required
Overlay Container HeightSets the height of the overlay container as a percentage of the skin height.80%Required
Overlay Container GapSets the minimum space kept between the overlays, and between the sticky video player and the overlays.1vh
Overlay Container Minimum WidthSets a minimum width for the overlay container, so the overlays do not become too small on narrow screens.120px
Overlay Container Maximum WidthSets a maximum width for the overlay container, so the overlays do not become too large on wide screens.300px
Hide Overlays Below Minimum WidthWhen enabled, hides the overlays whenever the overlay container is narrower than its minimum width.False | choices: False, True
Hover EffectSets the effect applied to the overlays when the pointer hovers over the side panel (desktop only).scale | choices: disabled, glow, scale, glow & scale
Overlay PositionSets the anchor point of the overlay container within the side panel.mid-center | choices: top-left, top-center, top-right, mid-left, mid-center, mid-right, bot-left, bot-center, bot-right
Overlay Container Horizontal Offset (optional)Sets a horizontal offset for the overlay container away from its aligned edge (px, %, vw).
Overlay Container Vertical Offset (optional)Sets a vertical offset for the overlay container away from its aligned edge (px, %, vh).
Advanced Overlay Settings
ParameterPurposeDefault
Main Overlay LayoutInset fits the main overlay into the space left by the top and bottom overlays, inside the overlay container. Full Bleed fills the whole side panel with the main overlay, ignoring the overlay container's width and height, and draws the top and bottom overlays on top of it.Inset | choices: Inset, Full Bleed
Main Overlay Scaling ModeSets how the Full Bleed main overlay fills the side panel. Contain shows the whole asset. Cover fills the panel and may crop. Fit to Width matches the panel width and may run past the top or bottom. Fit to Height matches the panel height and may run past the sides. Ignored in the Inset layout.contain | choices: contain, cover, fit to width, fit to height
Main Overlay PositionSets the anchor point of the Full Bleed main overlay within the side panel. Ignored in the Inset layout.mid-center | choices: top-left, top-center, top-right, mid-left, mid-center, mid-right, bot-left, bot-center, bot-right
Sticky Video Player
ParameterPurposeDefault
Video SideEnables the sticky video player in this side panel. When the top banner scrolls out of view its video continues here.Disabled | choices: Disabled, Enabled
Video TransitionSets the transition animation used when the sticky video player appears.Slide In | choices: Disabled, Slide In
PositionSets the vertical position of the sticky video player within the side panel.top | choices: top, middle, bottom
Max HeightSets the maximum height of the sticky video player. Match Top Banner Height copies the height of the top banner.Match Top Banner Height | choices: Match Top Banner Height, 180px, 200px, 250px, 300px, 350px, 400px
Overlay BehaviourControls how the side panel overlays react to the sticky video player. Overlap keeps the original behaviour, where the player is drawn on top of the overlays and can obscure them on some screens. Resize While Sticky shrinks the overlay container to the space left by the player while it is on screen, and restores it when the player hands playback back. Always Reserve Space keeps that reduced overlay area at all times, so nothing moves as the user scrolls. The Overlay Container Gap sets the minimum space kept between the player and the overlays.Overlap | choices: Overlap, Resize While Sticky, Always Reserve Space
Vertical OffsetSets an additional vertical offset from the chosen position (px, %, vh).0

Fluid Image & Streaming Video Skin

General
ParameterPurpose
Click URLClick destination for the skin.
Background
ParameterPurposeDefault
Background (Image)Image asset used as the background. Add only an image or a video, not both.
Background (Video)Streaming video asset used as the background. Add only an image or a video, not both.
Max Video Stream WeightSets the maximum stream weight for the background video. With more than one background video the budget is split between them, and the skin and top banner together must stay within platform limits.1.5mb | choices: 3.5mb, 3.0mb, 2.5mb, 2.0mb, 1.5mb, 1.0mb
Scaling ModeSets how the background scales. Cover fills the area and may crop. Contain shows the whole asset and may leave empty space. None keeps the intrinsic size.cover | choices: cover, contain, none
Background Anchor PointSets where the background is anchored when it is scaled to fill the panel.top-center | choices: top-left, top-center, top-right, mid-left, mid-center, mid-right, bot-left, bot-center, bot-right
Background ColourColour shown wherever the background does not cover the skin.#FFF
Overlays
ParameterPurposeDefault
Main OverlayMain overlay asset, using as much space as is available within the overlay container.
Top Overlay (optional)Optional overlay anchored to the top of the overlay container.
Top Overlay HeightSets the height of the top overlay as a percentage of the overlay container (px, vw and vh also accepted).15%
Bottom Overlay (optional)Optional overlay anchored to the bottom of the overlay container.
Bottom Overlay HeightSets the height of the bottom overlay as a percentage of the overlay container (px, vw and vh also accepted).10%
Overlay Container
ParameterPurposeDefaultNotes
Overlay Container WidthSets the width of the overlay container as a percentage of the side panel width.80%Required
Overlay Container HeightSets the height of the overlay container as a percentage of the skin height.80%Required
Overlay Container GapSets the minimum space kept between the overlays, and between the sticky video player and the overlays.1vh
Overlay Container Minimum WidthSets a minimum width for the overlay container, so the overlays do not become too small on narrow screens.120px
Overlay Container Maximum WidthSets a maximum width for the overlay container, so the overlays do not become too large on wide screens.300px
Hide Overlays Below Minimum WidthWhen enabled, hides the overlays whenever the overlay container is narrower than its minimum width.False | choices: False, True
Hover EffectSets the effect applied to the overlays when the pointer hovers over the side panel (desktop only).scale | choices: disabled, glow, scale, glow & scale
Overlay PositionSets the anchor point of the overlay container within the side panel.mid-center | choices: top-left, top-center, top-right, mid-left, mid-center, mid-right, bot-left, bot-center, bot-right
Overlay Container Horizontal Offset (optional)Sets a horizontal offset for the overlay container away from its aligned edge (px, %, vw).
Overlay Container Vertical Offset (optional)Sets a vertical offset for the overlay container away from its aligned edge (px, %, vh).
Top Overlay - Time In (optional)Video time (seconds) at which the top overlay appears. Only works with background video.
Top Overlay - Time Out (optional)Video time (seconds) at which the top overlay hides. Only works with background video.
Main Overlay - Time In (optional)Video time (seconds) at which the main overlay appears. Only works with background video.
Main Overlay - Time Out (optional)Video time (seconds) at which the main overlay hides. Only works with background video.
Bottom Overlay - Time In (optional)Video time (seconds) at which the bottom overlay appears. Only works with background video.
Bottom Overlay - Time Out (optional)Video time (seconds) at which the bottom overlay hides. Only works with background video.
Advanced Overlay Settings
ParameterPurposeDefault
Main Overlay LayoutInset fits the main overlay into the space left by the top and bottom overlays, inside the overlay container. Full Bleed fills the whole side panel with the main overlay, ignoring the overlay container's width and height, and draws the top and bottom overlays on top of it.Inset | choices: Inset, Full Bleed
Main Overlay Scaling ModeSets how the Full Bleed main overlay fills the side panel. Contain shows the whole asset. Cover fills the panel and may crop. Fit to Width matches the panel width and may run past the top or bottom. Fit to Height matches the panel height and may run past the sides. Ignored in the Inset layout.contain | choices: contain, cover, fit to width, fit to height
Main Overlay PositionSets the anchor point of the Full Bleed main overlay within the side panel. Ignored in the Inset layout.mid-center | choices: top-left, top-center, top-right, mid-left, mid-center, mid-right, bot-left, bot-center, bot-right
Sticky Video Player
ParameterPurposeDefault
Video SideEnables the sticky video player in this side panel. When the top banner scrolls out of view its video continues here.Disabled | choices: Disabled, Enabled
Video TransitionSets the transition animation used when the sticky video player appears.Slide In | choices: Disabled, Slide In
PositionSets the vertical position of the sticky video player within the side panel.top | choices: top, middle, bottom
Max HeightSets the maximum height of the sticky video player. Match Top Banner Height copies the height of the top banner.Match Top Banner Height | choices: Match Top Banner Height, 180px, 200px, 250px, 300px, 350px, 400px
Overlay BehaviourControls how the side panel overlays react to the sticky video player. Overlap keeps the original behaviour, where the player is drawn on top of the overlays and can obscure them on some screens. Resize While Sticky shrinks the overlay container to the space left by the player while it is on screen, and restores it when the player hands playback back. Always Reserve Space keeps that reduced overlay area at all times, so nothing moves as the user scrolls. The Overlay Container Gap sets the minimum space kept between the player and the overlays.Overlap | choices: Overlap, Resize While Sticky, Always Reserve Space
Vertical OffsetSets an additional vertical offset from the chosen position (px, %, vh).0
