Guide to skins
- The difference between our Seamless Skin & Fluid Skin formats
- The respective templates (i.e. Seamless Image Skin, Seamless Sliding Skin, Fluid Skin Image, Fluid Skin Video, etc.) within our Seamless & Fluid Skin formats
- Tips and best practice for using overlays

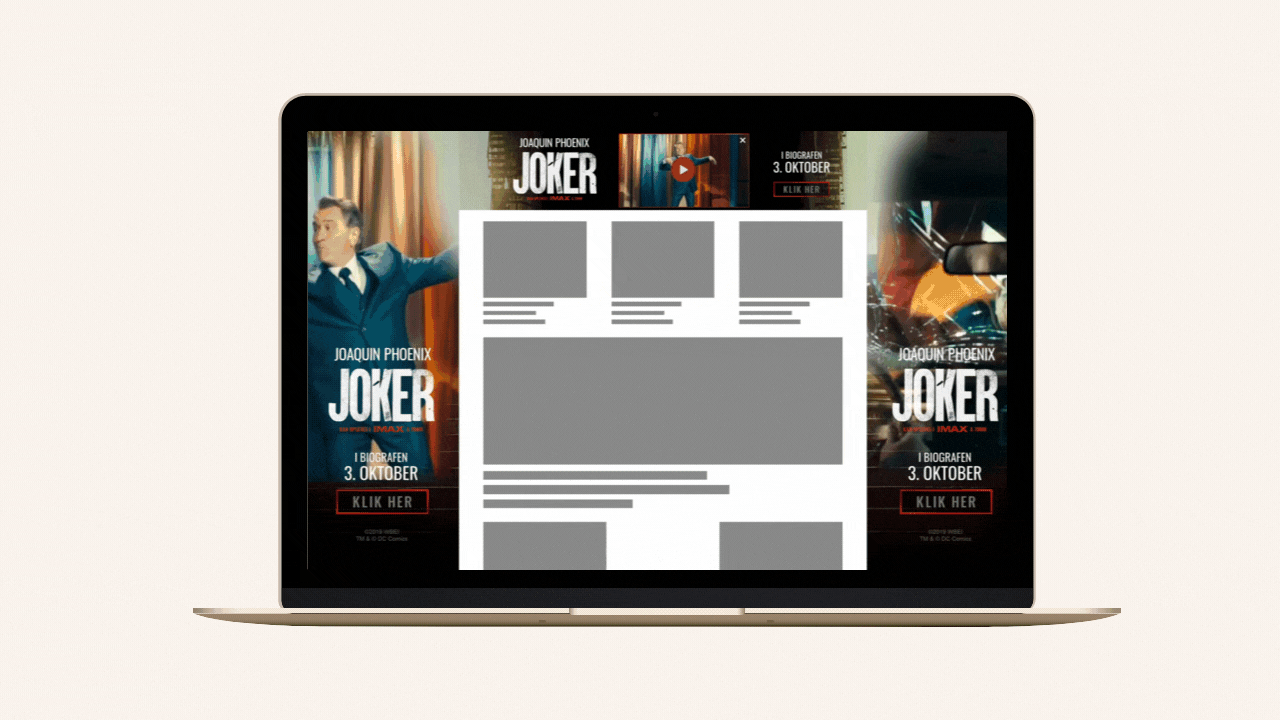

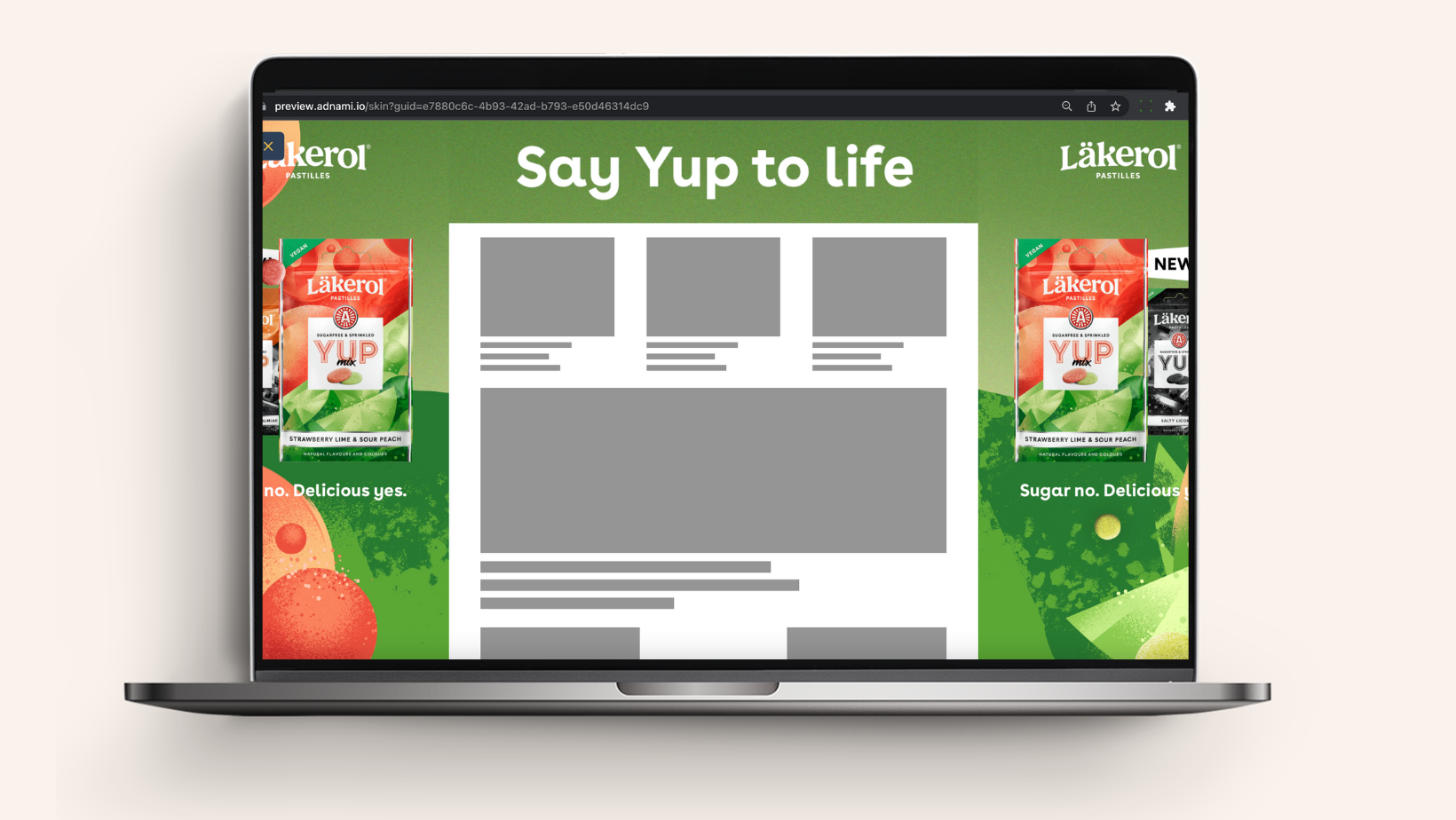

Examples
Recommended default creative dimensions
Side Panels:
Width: 800px (100% width)
Height: 1440px (100% height)
Top Banner:
HTML5: width: 1280px (100% width), height: 180px (100% height)* (HTML Zip File or 3rd Party Tag)
Top Banner sizes vary across publishers and between countries, so please read carefully to ensure your assets are produced correctly.
For HTML5 Top Banners, the creative width must be responsive (width: 100%) up to a maximum width of 1280 pixels. The height will match the billboard height from the list below. If the width of your top banner is not responsive, there may be empty space visible between the top banner and side panels on some sites.
Billboard placement sizes by country:
- 🇦🇹 AUT: 1000x250px
- 🇨🇭 CHE: 1000x250px
- 🇩🇪 DEU: 1000x250px
- 🇩🇰 DNK: 930x180px
- 🇫🇮 FIN: 1000x400px
- 🇫🇷 FRA: 970x250px
- 🇮🇹 ITA: 1000x250px
- 🇲🇽 MEX: 970x250px
- 🇳🇱 NLD: 970x250px
- 🇳🇴 NOR: 980x300px
- 🇵🇱 POL: 970x250px
- 🇸🇪 SWE: 1000x240px
- 🇬🇧 GBR: 970x250px
Format description and guidance

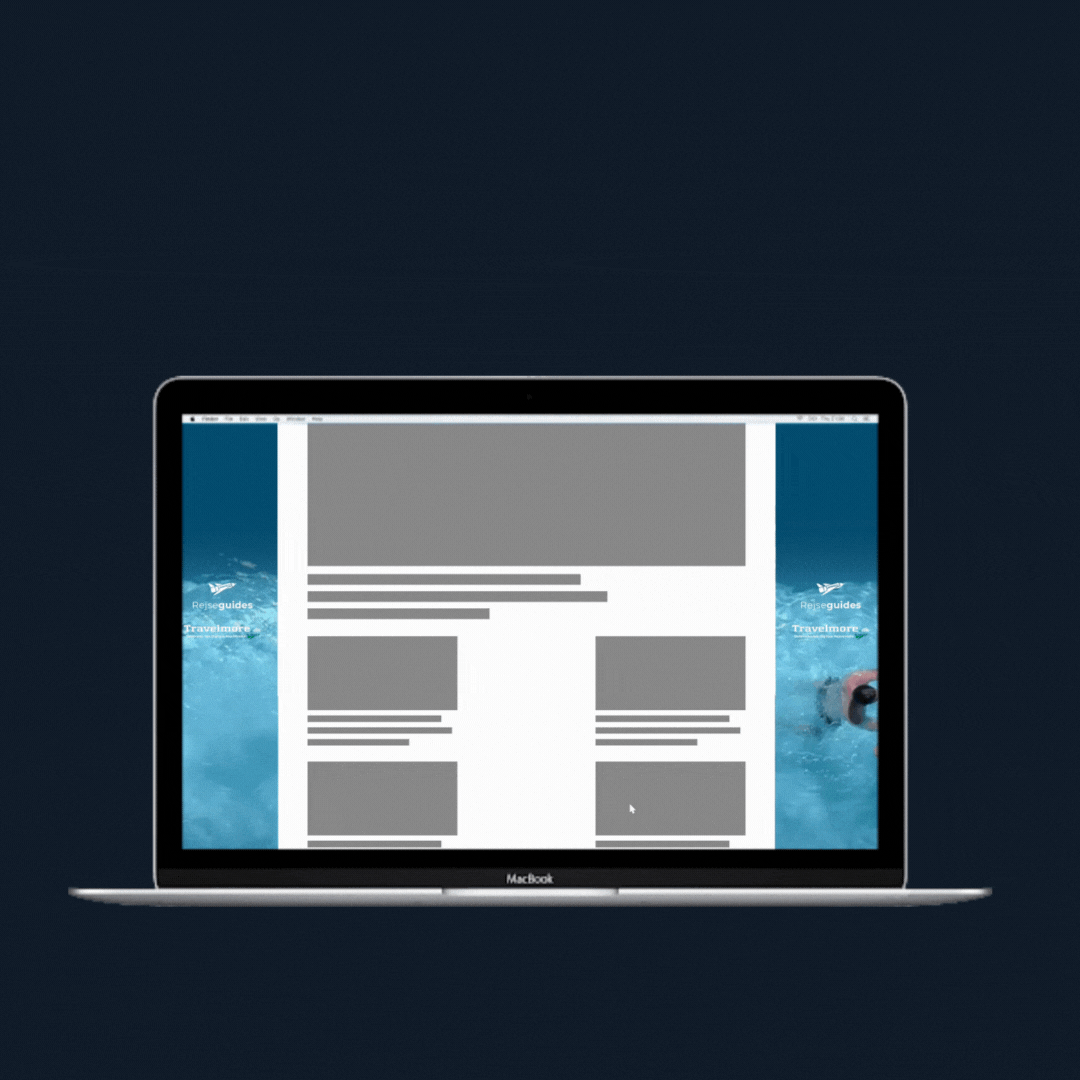

Fluid skins are a responsive high impact format, composed of three individual HTML5 panels - a left panel, a right panel (the side panels), and a top banner. The side panels fill the space between the sides of the page content and the window edge, and scale responsively with the height and width of the browser. The topbanner fills the gap between the side panels, above the page content. The content within each panel should scale responsively based on the width and height of the individual panels. For more information about building responsive creative, check out of Guide to Responsive HTML and building responsive creative guide.
All creative assets (images, videos, scripts etc) used by your banner must be included within the creative Zip-file. Linking to assets hosted on external severs is not permitted, and may result in your ad being blocked by some vendors. The only exception to this rule is for webfonts hosted by fonts libraries for licensing purposes, such as Adobe Typekit, Google Fonts, MyFonts etc.
Sticky video and the side overlays. When the creative is paired with the Skin Top with Sticky Streaming Video top banner, the video moves into the side panel once the top banner scrolls out of view. The Overlay Behaviour setting controls what the side overlays do while that player is on screen:
- Overlap (default) – the player is drawn on top of the overlays. Nothing moves, but the player can obscure overlay content on shorter screens.
- Resize While Sticky – the overlay container shrinks to the space the player leaves while it is on screen, and returns to full size when playback is handed back to the top banner.
- Always Reserve Space – that reduced overlay area is kept at all times, so nothing moves as the user scrolls.
Both reserving modes scale the overlays down rather than cropping them, so design overlay artwork to stay legible at around two thirds of its full height. The Overlay Container Gap sets the minimum space kept between the player and the overlays. Overlap is the default, so a creative only behaves differently once this is changed.
Creative Lab Webinars
Join our resident Head of Creative, John Feltham, as he walks through the process of building creatives using HTML5.
Getting hands on with responsive HTML5
Max total file weight
3.5 MB.
For best performance, all assets should be compressed and optimized to the lowest possible file weight.
Animation
Maximum of 5 loops.
Maximum animation time 30 seconds (may vary by publisher).
Asset type
Responsive HTML5 (either Adnami hosted by sharing a zip-file or served via 3rd party tags).
HTML must be minified and optimized for polite load.
Click tags and tracking
For Adnami hosted creatives, see our clicktags and tracking guide.
To enable video tracking metrics, see our API for measuring VTR guide.
For creatives hosted using 3rd party tags, use the appropriate click methods and trackers for that provider examples.
Other Requirements
Do not link to any files or scripts hosted on external domains. All assets used should be included within the creative zip-file, or hosted on Adnami domains. Linking to resources on non-approved vendors may result in ads being blocked by Google Ads Manager and DV360.
Audio
User-initiated.
Template Details
Zip File
General
| Parameter | Purpose | Default |
|---|---|---|
| File | Upload a zipped HTML bundle (HTML/CSS/JS plus assets) that powers the file. Keep the archive within platform size limits. | |
| 1.0 Click Url (optional) | Destination URL triggered when the user interacts with this element. Include https:// and any tracking parameters. | |
| 1.1 Add automatic click button | Adds an invisible button on top of the creative that opens the Click URL. Note this can block interaction with the creative, for interactive creative set to Disabled and ensure click URLs are implemented at creative level. | Enabled | choices: Enabled, Disabled |
Fluid Scrolling Skin
General
| Parameter | Purpose | Default |
|---|---|---|
| Default Click URL | Click destination used unless a skin sets its own Click URL. | |
| Transition Style | Sets how one skin gives way to the next as the page scrolls. Vertical Wipe peels the skin away from the bottom edge upwards, and is the original effect. Horizontal Wipe uncovers the next skin from the right edge across to the left. Circular Wipe grows the next skin out from the centre of the banner. Fade dissolves one skin into the next. | Vertical Wipe | choices: Vertical Wipe, Horizontal Wipe, Circular Wipe, Fade |
| Show Transition Shadow | When enabled, the edge of the transition casts a soft drop shadow over the skin beneath it. | True | choices: True, False |
Skin 1
| Parameter | Purpose |
|---|---|
| Click URL (optional) | Falls back to the Default Click URL when blank. |
| Background (Image) | Image asset used as the background. Add only an image or a video, not both. |
| Main Overlay | Main overlay asset, using as much space as is available within the overlay container. |
Skin 2
| Parameter | Purpose |
|---|---|
| Click URL (optional) | Falls back to the Default Click URL when blank. |
| Background (Image) | Image asset used as the background. Add only an image or a video, not both. |
| Main Overlay | Main overlay asset, using as much space as is available within the overlay container. |
Skin 3
| Parameter | Purpose |
|---|---|
| Click URL (optional) | Falls back to the Default Click URL when blank. |
| Background (Image) | Image asset used as the background. Add only an image or a video, not both. |
| Main Overlay | Main overlay asset, using as much space as is available within the overlay container. |
Static Overlays
| Parameter | Purpose | Default |
|---|---|---|
| Top Overlay (optional) | Optional overlay anchored to the top of the overlay container. | |
| Top Overlay Height | Sets the height of the top overlay as a percentage of the overlay container (px, vw and vh also accepted). | 15% |
| Bottom Overlay (optional) | Optional overlay anchored to the bottom of the overlay container. | |
| Bottom Overlay Height | Sets the height of the bottom overlay as a percentage of the overlay container (px, vw and vh also accepted). | 10% |
Background Settings
| Parameter | Purpose | Default |
|---|---|---|
| Scaling Mode | Sets how the background scales. Cover fills the area and may crop. Contain shows the whole asset and may leave empty space. None keeps the intrinsic size. | cover | choices: cover, contain, none |
| Background Anchor Point | Sets where the background is anchored when it is scaled to fill the panel. | top-center | choices: top-left, top-center, top-right, mid-left, mid-center, mid-right, bot-left, bot-center, bot-right |
| Background Colour | Colour shown wherever the background does not cover the skin. | #FFF |
Overlay Container
| Parameter | Purpose | Default | Notes |
|---|---|---|---|
| Overlay Container Width | Sets the width of the overlay container as a percentage of the side panel width. | 80% | Required |
| Overlay Container Height | Sets the height of the overlay container as a percentage of the skin height. | 80% | Required |
| Overlay Container Gap | Sets the minimum space kept between the overlays, and between the sticky video player and the overlays. | 1vh | |
| Overlay Container Minimum Width | Sets a minimum width for the overlay container, so the overlays do not become too small on narrow screens. | 120px | |
| Overlay Container Maximum Width | Sets a maximum width for the overlay container, so the overlays do not become too large on wide screens. | 300px | |
| Hide Overlays Below Minimum Width | When enabled, hides the overlays whenever the overlay container is narrower than its minimum width. | False | choices: False, True | |
| Hover Effect | Sets the effect applied to the overlays when the pointer hovers over the side panel (desktop only). | scale | choices: disabled, glow, scale, glow & scale | |
| Overlay Position | Sets the anchor point of the overlay container within the side panel. | mid-center | choices: top-left, top-center, top-right, mid-left, mid-center, mid-right, bot-left, bot-center, bot-right | |
| Overlay Container Horizontal Offset (optional) | Sets a horizontal offset for the overlay container away from its aligned edge (px, %, vw). | ||
| Overlay Container Vertical Offset (optional) | Sets a vertical offset for the overlay container away from its aligned edge (px, %, vh). |
Advanced Overlay Settings
| Parameter | Purpose | Default |
|---|---|---|
| Main Overlay Layout | Inset fits the main overlay into the space left by the top and bottom overlays, inside the overlay container. Full Bleed fills the whole side panel with the main overlay, ignoring the overlay container's width and height, and draws the top and bottom overlays on top of it. | Inset | choices: Inset, Full Bleed |
| Main Overlay Scaling Mode | Sets how the Full Bleed main overlay fills the side panel. Contain shows the whole asset. Cover fills the panel and may crop. Fit to Width matches the panel width and may run past the top or bottom. Fit to Height matches the panel height and may run past the sides. Ignored in the Inset layout. | contain | choices: contain, cover, fit to width, fit to height |
| Main Overlay Position | Sets the anchor point of the Full Bleed main overlay within the side panel. Ignored in the Inset layout. | mid-center | choices: top-left, top-center, top-right, mid-left, mid-center, mid-right, bot-left, bot-center, bot-right |
Sticky Video Player
| Parameter | Purpose | Default |
|---|---|---|
| Video Side | Enables the sticky video player in this side panel. When the top banner scrolls out of view its video continues here. | Disabled | choices: Disabled, Enabled |
| Video Transition | Sets the transition animation used when the sticky video player appears. | Slide In | choices: Disabled, Slide In |
| Position | Sets the vertical position of the sticky video player within the side panel. | top | choices: top, middle, bottom |
| Max Height | Sets the maximum height of the sticky video player. Match Top Banner Height copies the height of the top banner. | Match Top Banner Height | choices: Match Top Banner Height, 180px, 200px, 250px, 300px, 350px, 400px |
| Overlay Behaviour | Controls how the side panel overlays react to the sticky video player. Overlap keeps the original behaviour, where the player is drawn on top of the overlays and can obscure them on some screens. Resize While Sticky shrinks the overlay container to the space left by the player while it is on screen, and restores it when the player hands playback back. Always Reserve Space keeps that reduced overlay area at all times, so nothing moves as the user scrolls. The Overlay Container Gap sets the minimum space kept between the player and the overlays. | Overlap | choices: Overlap, Resize While Sticky, Always Reserve Space |
| Vertical Offset | Sets an additional vertical offset from the chosen position (px, %, vh). | 0 |
